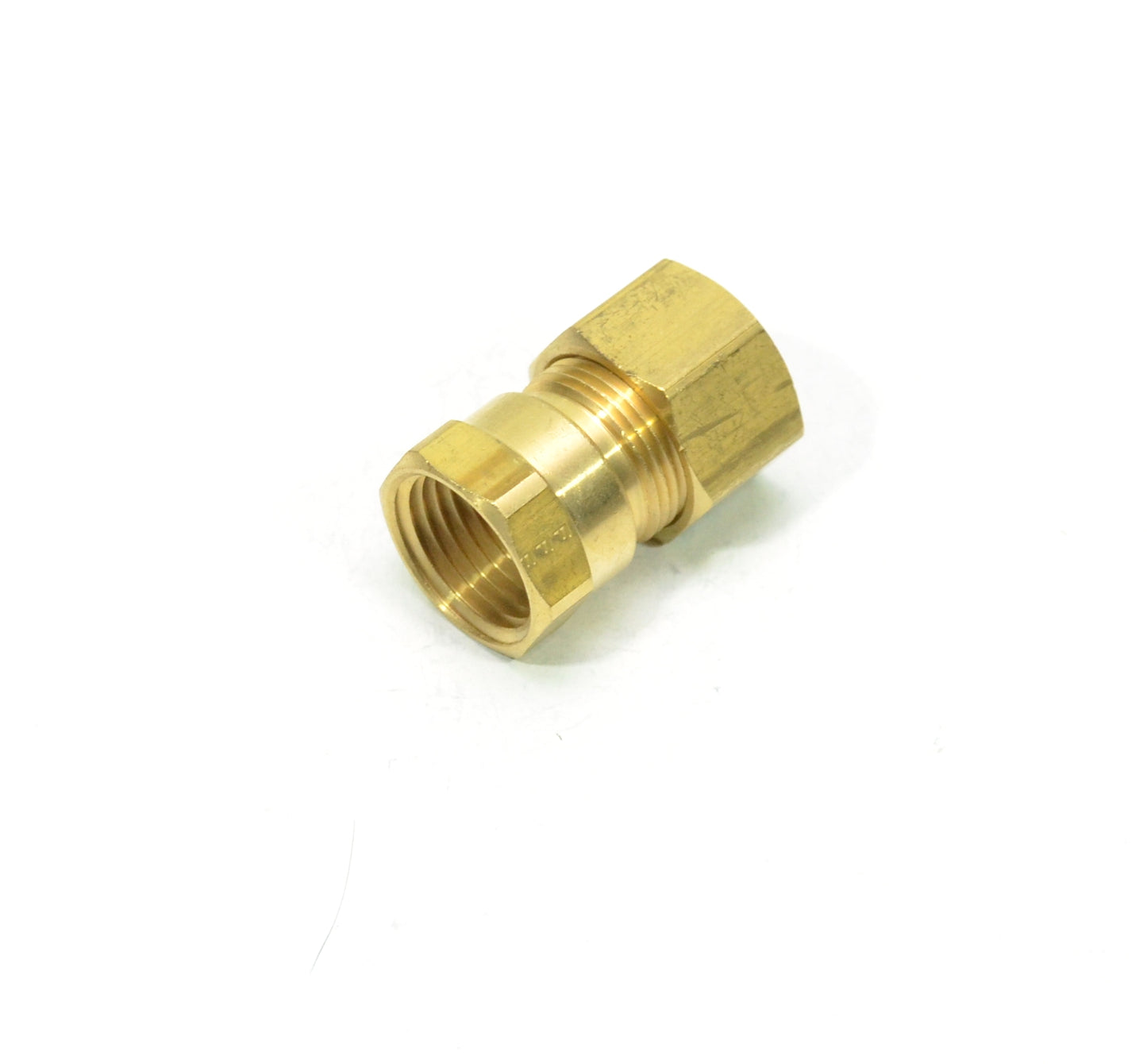

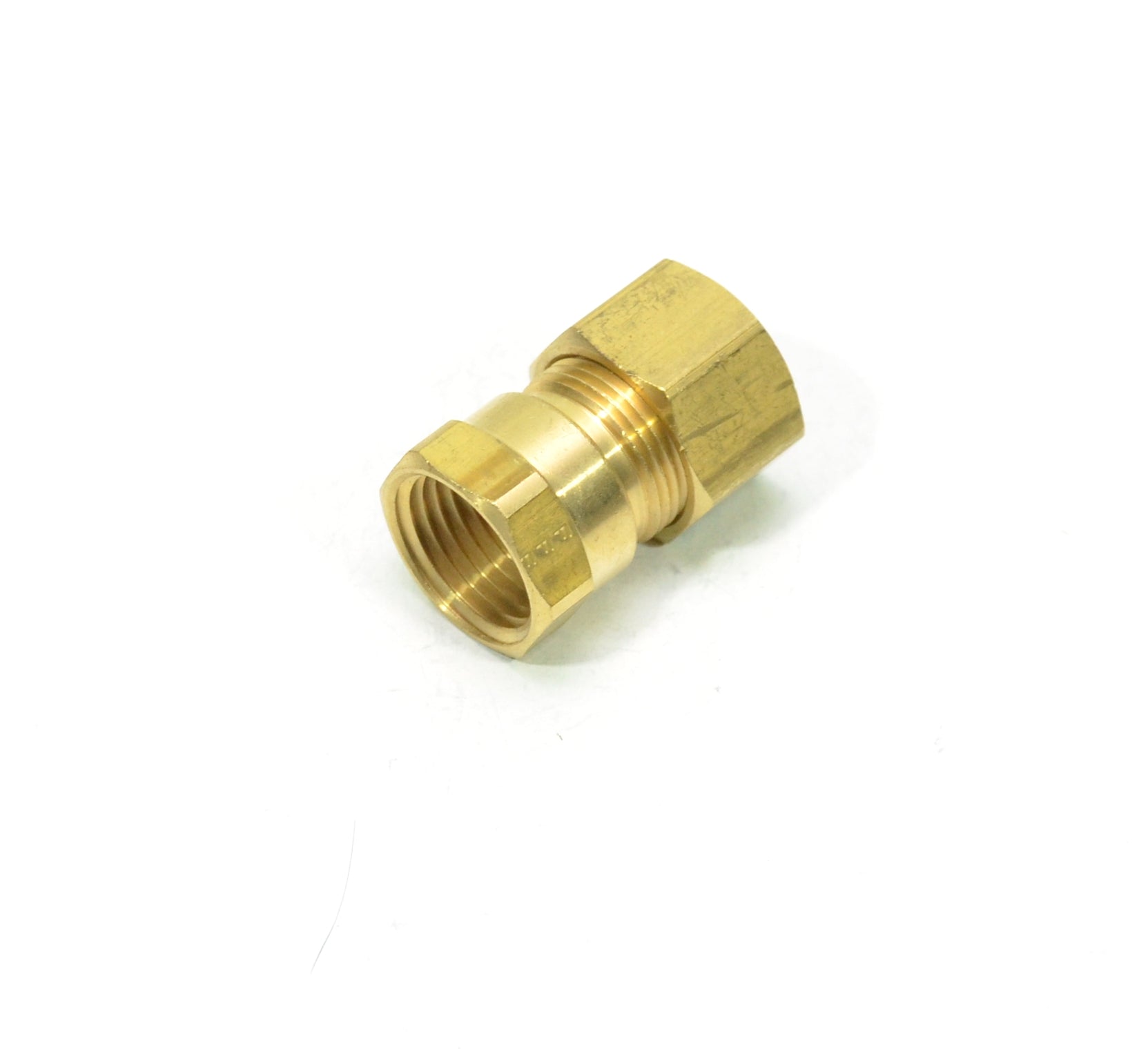

5/8 Tube OD Compression to 1/2 Npt Female Pipe Adapter Straight Fitting for Copper Tubing Water Oil Air
5/8 Tube OD Compression to 1/2 Npt Female Pipe Adapter Straight Fitting for Copper Tubing Water Oil Air
Couldn't load pickup availability
5/8 Tube OD - 1/2 NPT Female Compression Pipe Adapter Fitting Water Oil Gas
Product Family Brass Fittings
Product Category Compression to NPT Female Straight
FasParts # COMP-66-10D
Body Material Precision Machined Brass
Tube OD 5/8" Compression
Thread 1/2" Female NPT
Product Features
Working Pressure dependent on pipe OD and type of tube used, in reducers take lower pressure rating (based from larger OD side)
Suitable for use in Automotive, Nautical, Industrial, and Commercial applications
Quality brass fitting, solid construction. Will never rust, excellent durability
Suitable for pressure washers, irrigation, fluid transfer, engine repair, crack case repairs, plumbing, heaters, boilers, laboratory equipment
Includes copper gasket/seal and nut ready to install
| Dash Size | Tube OD | PSI | Copper Tube Wall |
| -2 | 1/8 | 400 | 0.03 |
| -3 | 3/16 | 400 | 0.03 |
| -4 | 1/4 | 300 | 0.03 |
| -5 | 5/16 | 300 | 0.032 |
| -6 | 3/8 | 200 | 0.032 |
| -8 | 1/2 | 200 | 0.032 |
| -10 | 5/8 | 150 | 0.035 |
| -12 | 3/4 | 100 | 0.035 |
