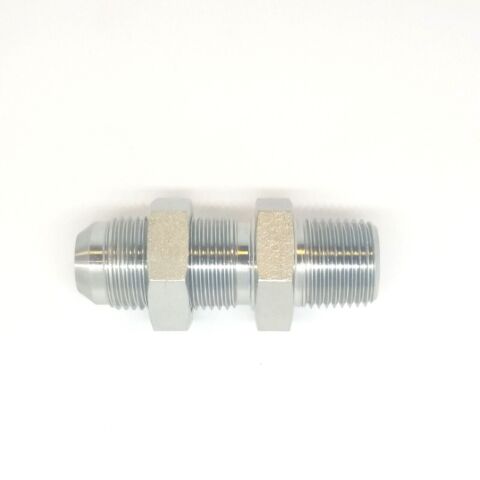

5/8 Jic 37° Flare Male x 1/2 Npt Male Bulkhead Adapter Hydraulic Steel Fitting 2706-10-08

5/8 Jic 37° Flare Male x 1/2 Npt Male Bulkhead Adapter Hydraulic Steel Fitting 2706-10-08

Dash Size: -10 Tube OD: 5/8 Jic 37 / Sae 37 Male (Actual Nominal Thread Size 7/8 x 14 Tpi)

Npt Thread: 1/2" Npt x 14 Tpi Male (Actual Nominal Thread Size 7/8")

Overall Length: 2.7"
Max Panel Depth: 0.52"
Hole Dia: 0.87"
Wrench: 1.14"

JIC (Joint Industrial Council) fittings, provide a tight metal to metal seal on tubing that is flared to 37° degrees. Fittings require a nut and a sleeve (ferrule) for each tube end. Nuts and sleeves are sold separately.
Suitable for: Air, Hydraulic Fluid, ATV, Isopropyl Alcohol, Natural Gas, Fuel, Lubricants, Fresh Water
Working Temperature: -65°F (-54°C) to 250°F (120°C)
Plated Steel
