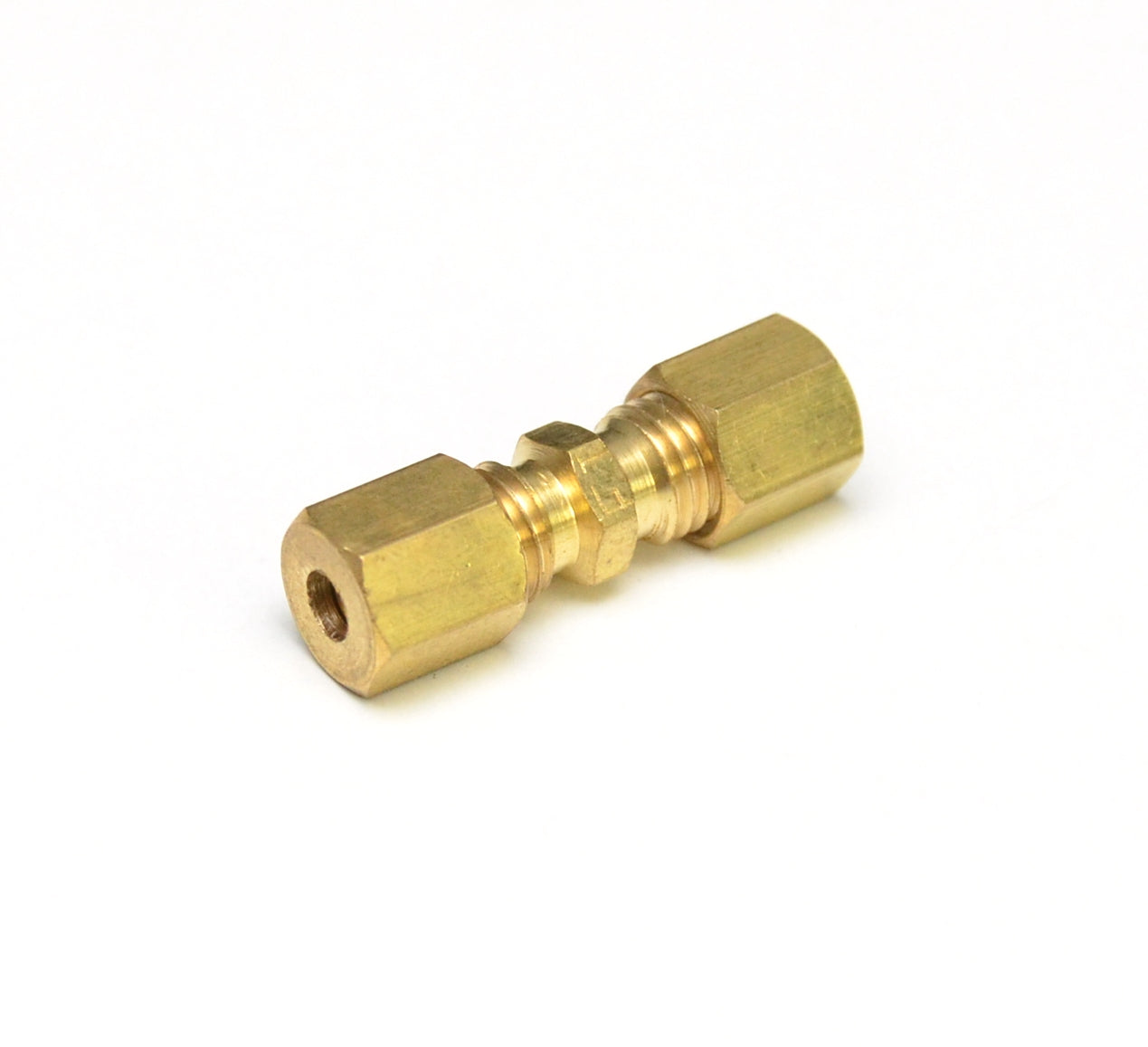

5/32 Tube Od Straight Union Coupling Compression Fitting for Copper Tubing Water Air Oil
5/32 Tube Od Straight Union Coupling Compression Fitting for Copper Tubing Water Air Oil
Couldn't load pickup availability
5/32 OD Compression Copper Tube Union Straight Joiner Brass Fitting Air Gas Water
Specifications
Product Family Straight Compression Bulkhead Union
FasParts # COMP-62-2-1/2
Body Material Precision Machined Brass with Copper Gasket
Tube OD1 5/32" Compression Tube
Tube OD2 5/32" Compression Tube
Accessories Includes copper seals and nuts
Product Features
Working pressure dependent on pipe OD and type of tube used, in reducers take lower pressure rating (based from larger OD side)
Quality brass fitting, solid construction. Will never rust, excellent durability
Suitable for pressure washers, irrigation, fluid transfer, engine repair, crack case repairs, plumbing, heaters, boilers, laboratory equipment
Includes copper gasket/seal and nut ready to install
| Dash Size | Tube OD | PSI | Copper Tube Wall |
| -2 | 1/8 | 400 | 0.03 |
| -3 | 3/16 | 400 | 0.03 |
| -4 | 1/4 | 300 | 0.03 |
| -5 | 5/16 | 300 | 0.032 |
| -6 | 3/8 | 200 | 0.032 |
| -8 | 1/2 | 200 | 0.032 |
| -10 | 5/8 | 150 | 0.035 |
| -12 | 3/4 | 100 | 0.035 |
