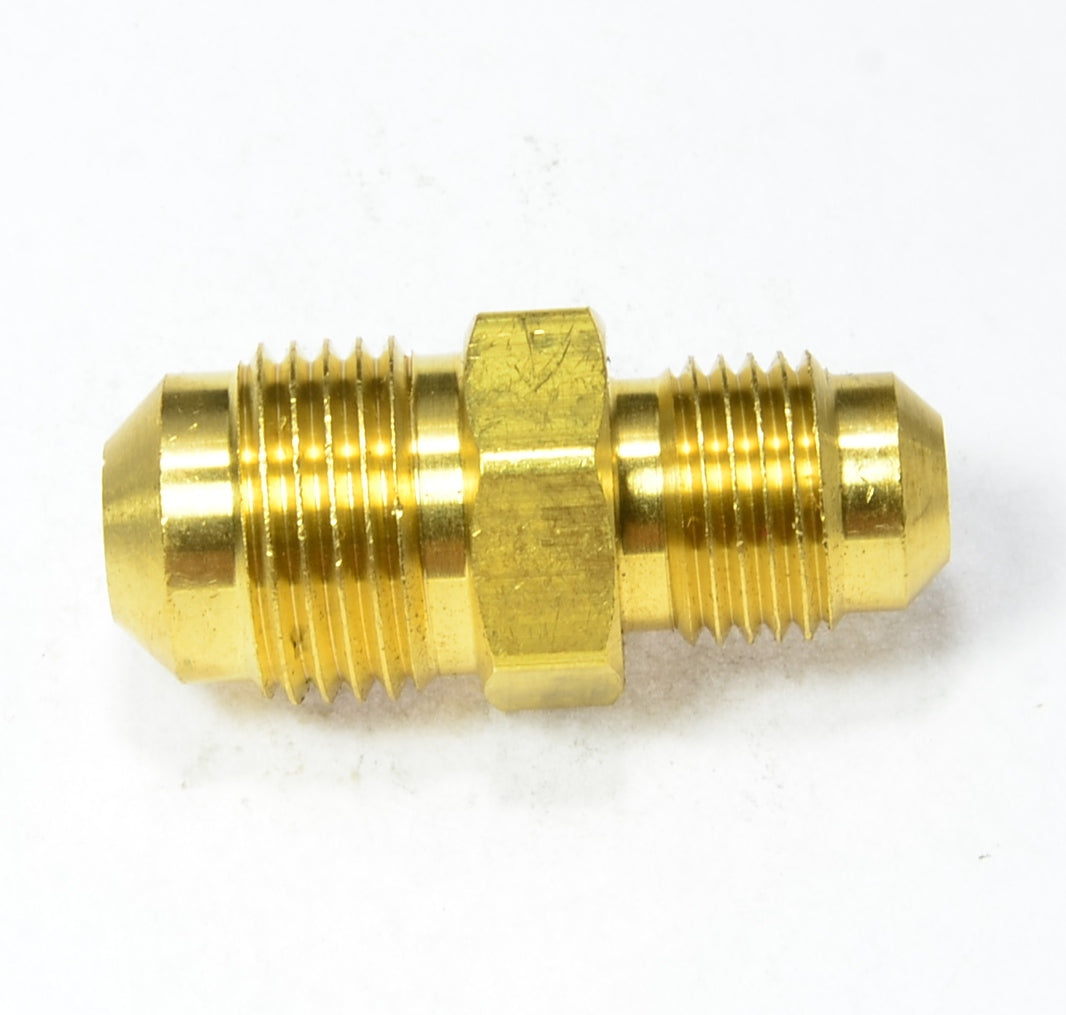

3/8 to 5/16 Male Flare Straight Reducer Union Coupling Mfl Sae 45 Degree Flare Fitting
3/8 to 5/16 Male Flare Straight Reducer Union Coupling Mfl Sae 45 Degree Flare Fitting
Couldn't load pickup availability
Sae 45 Degree 3/8 to 5/16 Tube OD MFL Male Flare Straight Union Reducer Fitting
Specifications
Product Family SAE 45 Flare Fittings
Product Category Straight Male Union Reducer Coupling
FasParts # SAE45-42R-65
Body Material Milled Machined Brass
Tube OD1 3/8" Tube OD Male MFL
Tube OD2 5/16" Tube OD Male MFL
Product Features
Working Pressure see chart below @ -65F to +250F Suitable for use in Automotive, Nautical, Industrial, and Commercial applications
Quality brass fitting, solid construction. Will never rust, excellent durability
LP-Gas, Natural Gas, Refrigeration, Power Steering, Gasoline. Used with Copper, aluminum, and Welded Steel Hydraulic
Easily join / repair / splice two properly flared SAE 45 degree copper tubes
Working Pressure
| Dash Size | Tube OD | PSI | Tube Wall |
| 2 | 1/8 | 2800 | 0.03 |
| 3 | 3/16 | 1900 | 0.03 |
| 4 | 1/4 | 1400 | 0.03 |
| 5 | 5/16 | 1200 | 0.032 |
| 6 | 3/8 | 1000 | 0.032 |
| 8 | 1/2 | 750 | 0.032 |
| 10 | 5/8 | 650 | 0.035 |
| 12 | 3/4 | 550 | 0.035 |
