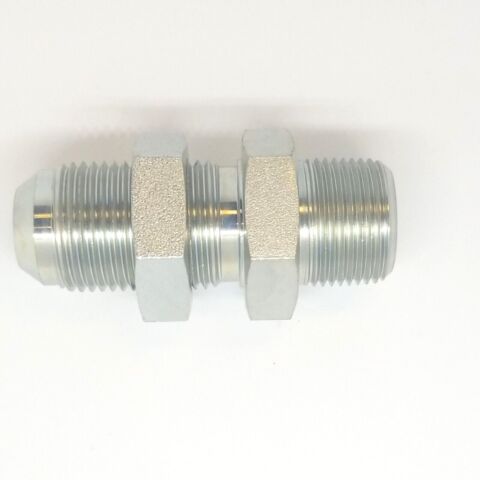

3/4 Jic 37° Flare Male x 3/4 Npt Male Bulkhead Adapter Hydraulic Steel Fitting 2706-12-12

3/4 Jic 37° Flare Male x 3/4 Npt Male Bulkhead Adapter Hydraulic Steel Fitting 2706-12-12

Dash Size: -12 Tube OD: 3/4" Jic 37 / Sae 37 Male (Actual Nominal Thread Size 1-1/6" x 12 Tpi)

Npt Thread: 3/4" Npt x 14 Tpi Male (Actual Nominal Thread Size 1-1/16")

Overall Length: 2.9"
Max Panel Depth: 0.5"
Hole Dia: 1.05"
Wrench: 1.37"

JIC (Joint Industrial Council) fittings, provide a tight metal to metal seal on tubing that is flared to 37° degrees. Fittings require a nut and a sleeve (ferrule) for each tube end. Nuts and sleeves are sold separately.
Suitable for: Air, Hydraulic Fluid, ATV, Isopropyl Alcohol, Natural Gas, Fuel, Lubricants, Fresh Water
Working Temperature: -65°F (-54°C) to 250°F (120°C)
Plated Steel
