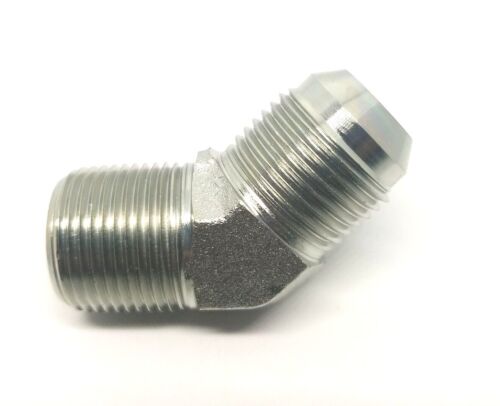

3/4 Jic 37° Flare Male x 3/4 Npt Male 45 Degree Elbow Hydraulic Steel Fitting FasParts 2503-12-12
3/4 Jic 37° Flare Male x 3/4 Npt Male 45 Degree Elbow Hydraulic Steel Fitting FasParts 2503-12-12
Regular price
$12.72 USD
Regular price
Sale price
$12.72 USD
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability
2503-12-12
Dash Size: -12 Tube OD: 3/4" Jic 37 / Sae 37 Male (Actual Nominal Thread Size 1-1/6" x 12 Tpi)
Npt Thread: 3/4" Npt x 14 Tpi Male (Actual Nominal Thread Size 1-1/16")
3/4 Jic 37° Flare Male x 3/4 Npt Male 45 Degree Elbow Hydraulic Steel Fitting FasParts 2503-12-12
JIC (Joint Industrial Council) fittings, provide a tight metal to metal seal on tubing that is flared to 37° degrees. Fittings require a nut and a sleeve (ferrule) for each tube end. Nuts and sleeves are sold separately.
Suitable for: Air, Hydraulic Fluid, ATV, Isopropyl Alcohol, Natural Gas, Fuel, Lubricants, Fresh Water
Working Temperature: -65°F (-54°C) to 250°F (120°C)
Plated Steel
