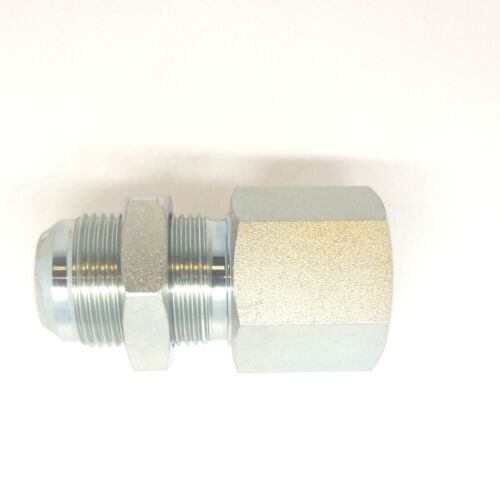

1 Jic 37° Flare Male x 1 Npt Female Bulkhead Adapter Hydraulic Steel Fitting 2705-16-16

Dash Size: -16 Tube OD: 1" Jic 37 / Sae 37 Male (Actual Nominal Thread Size 1-5/16" x 12 Tpi)

Npt Thread: 1" Npt x 11-1/2 Tpi Female (Actual Nominal Thread Size 1-5/16")

Overall Length: 3.15"
Max Panel Depth: 0.4"
Hole Dia: 1.32"
Wrench: 1.63"

JIC (Joint Industrial Council) fittings, provide a tight metal to metal seal on tubing that is flared to 37° degrees. Fittings require a nut and a sleeve (ferrule) for each tube end. Nuts and sleeves are sold separately.
Suitable for: Air, Hydraulic Fluid, ATV, Isopropyl Alcohol, Natural Gas, Fuel, Lubricants, Fresh Water
Working Temperature: -65°F (-54°C) to 250°F (120°C)
Plated Steel
