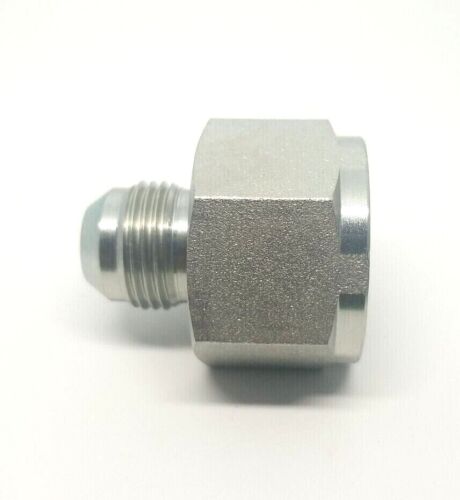

1 inch Female Jic 37° x 5/8 Male Jic 37° Hydraulic Steel Reducer Adapter 2406-16-10

2406-16-10

Dash Size: -16 Tube OD: 1" Jic 37 / Sae 37 Female (Actual Nominal Thread Size 1-5/16" x 12 Tpi)

Dash Size: -10 Tube OD: 5/8 Jic 37 / Sae 37 Male (Actual Nominal Thread Size 7/8 x 14 Tpi)

1 inch Female Jic 37° x 5/8 Male Jic 37° FasParts Hydraulic Steel Reducer Adapter

JIC (Joint Industrial Council) fittings, provide a tight metal to metal seal on tubing that is flared to 37° degrees. Fittings require a nut and a sleeve (ferrule) for each tube end. Nuts and sleeves are sold separately.
Suitable for: Air, Hydraulic Fluid, ATV, Isopropyl Alcohol, Natural Gas, Fuel, Lubricants, Fresh Water
Working Temperature: -65°F (-54°C) to 250°F (120°C)
Plated Steel
