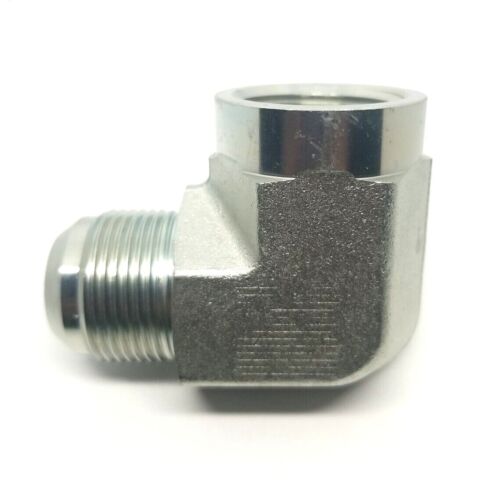

1 in Jic 37° Flare Male x 1 in Female Npt 90 Degree L Hydraulic Steel Fitting FasParts 2502-16-16
1 in Jic 37° Flare Male x 1 in Female Npt 90 Degree L Hydraulic Steel Fitting FasParts 2502-16-16
Regular price
$33.74 USD
Regular price
Sale price
$33.74 USD
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability
2502-16-16
Dash Size: -16 Tube OD: 1" Jic 37 / Sae 37 Male (Actual Nominal Thread Size 1-5/16" x 12 Tpi)
Npt Thread: 1" Npt x 11-1/2 Tpi Female (Actual Nominal Thread Size 1-5/16")
1 in Jic 37° Flare Male x 1 in Female Npt 90 Degree L Hydraulic Steel Fitting FasParts 2502-16-16
JIC (Joint Industrial Council) fittings, provide a tight metal to metal seal on tubing that is flared to 37° degrees. Fittings require a nut and a sleeve (ferrule) for each tube end. Nuts and sleeves are sold separately.
Suitable for: Air, Hydraulic Fluid, ATV, Isopropyl Alcohol, Natural Gas, Fuel, Lubricants, Fresh Water
Working Temperature: -65°F (-54°C) to 250°F (120°C)
Plated Steel
