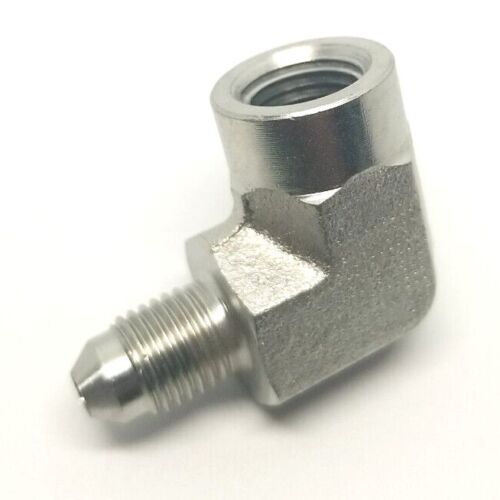

1/4 Jic 37° Flare Male x 1/4 Female Npt 90 Degree L Hydraulic Steel Fitting FasParts 2502-04-04
1/4 Jic 37° Flare Male x 1/4 Female Npt 90 Degree L Hydraulic Steel Fitting FasParts 2502-04-04
Regular price
$6.38 USD
Regular price
Sale price
$6.38 USD
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability
2502-04-04
Dash Size: -4 Tube OD: 1/4" Jic 37 / Sae 37 Male (Actual Nominal Thread Size 7/16" x 20 Tpi)
Npt Thread: 1/4" Npt x 18 Tpi Female (Actual Nominal Thread Size 1/2")
1/4 Jic 37° Flare Male x 1/4 Female Npt 90 Degree L Hydraulic Steel Fitting FasParts 2502-04-04
JIC (Joint Industrial Council) fittings, provide a tight metal to metal seal on tubing that is flared to 37° degrees. Fittings require a nut and a sleeve (ferrule) for each tube end. Nuts and sleeves are sold separately.
Suitable for: Air, Hydraulic Fluid, ATV, Isopropyl Alcohol, Natural Gas, Fuel, Lubricants, Fresh Water
Working Temperature: -65°F (-54°C) to 250°F (120°C)
Plated Steel
