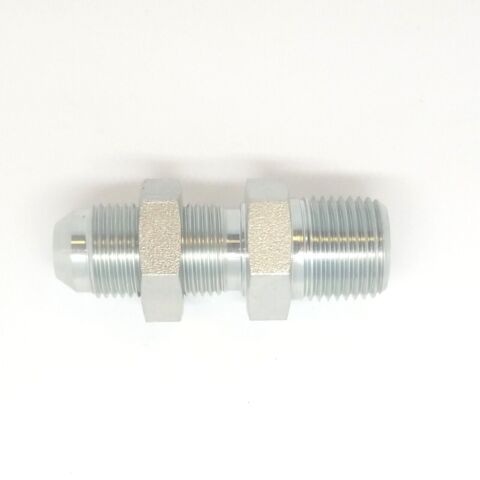

1/2 Jic 37° Flare Male x 1/2 Npt Male Bulkhead Adapter Hydraulic Steel Fitting 2706-08-08

1/2 Jic 37° Flare Male x 1/2 Npt Male Bulkhead Adapter Hydraulic Steel Fitting 2706-08-08

Dash Size: -8 Tube OD: 1/2" Jic 37 / Sae 37 Male (Actual Nominal Thread Size 3/4" x 16 Tpi)

Npt Thread: 1/2" Npt x 14 Tpi Male (Actual Nominal Thread Size 7/8")

Overall Length: 2.5"
Max Panel Depth: 0.48"
Hole Dia: 0.75"
Wrench: 1"

JIC (Joint Industrial Council) fittings, provide a tight metal to metal seal on tubing that is flared to 37° degrees. Fittings require a nut and a sleeve (ferrule) for each tube end. Nuts and sleeves are sold separately.
Suitable for: Air, Hydraulic Fluid, ATV, Isopropyl Alcohol, Natural Gas, Fuel, Lubricants, Fresh Water
Working Temperature: -65°F (-54°C) to 250°F (120°C)
Plated Steel
