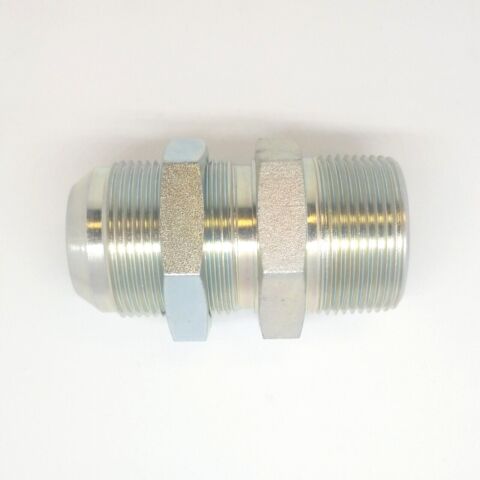

1-1/4 in Jic 37° Flare Male x 1-1/4 in Npt Male Bulkhead Adapter Hydraulic 2706-20-20

1-1/4 in Jic 37° Flare Male x 1-1/4 in Npt Male Bulkhead Adapter Hydraulic 2706-20-20

Dash Size: -20 Tube OD: 1-1/4" Jic 37 / Sae 37 Male (Actual Nominal Thread Size 1-5/8" x 12 Tpi)

NPT thread 1-1/4 NPT Male (1.66" Outer Diameter)

Overall Length: 3.3"

Max Panel Depth: 0.45"

Hole Dia: 1.56"

Wrench: 1.8"

JIC (Joint Industrial Council) fittings, provide a tight metal to metal seal on tubing that is flared to 37° degrees. Fittings require a nut and a sleeve (ferrule) for each tube end. Nuts and sleeves are sold separately. Suitable for: Air, Hydraulic Fluid, ATV, Isopropyl Alcohol, Natural Gas, Fuel, Lubricants, Fresh Water Working Temperature: -65°F (-54°C) to 250°F (120°C) Plated Steel
